How to Design and Normalize a Database Schema in SQL Server

By

A well-structured database schema is the backbone of any reliable application. Without thoughtful schema design, databases become difficult to manage, queries grow inefficient, and applications risk inconsistency or redundancy. SQL Server provides a robust set of features that allow database architects and developers to design schemas that are scalable, maintainable, and aligned with business requirements.

This article explores the principles of schema design and normalization in SQL Server, guiding beginners and professionals alike through the science of structuring relational databases for optimal performance and integrity.

Understanding Database Schema

A database schema defines the logical structure of a database. It describes how tables are organized, how they relate to one another, and how constraints ensure data consistency. At its core, a schema is a blueprint—a map of how data is stored and accessed.

In SQL Server, schemas serve two purposes:

  1. Logical Grouping – Objects such as tables, views, and stored procedures are grouped under schemas (e.g., dbo).
  2. Design Structure – The arrangement of tables, columns, and relationships defines how business data is represented.

Steps in Schema Design

  1. Requirement Gathering
    Begin by analyzing the business domain. For example, an HR system may need to manage employees, departments, and payroll.
  2. Entity Identification
    Break down the system into entities (e.g., Employee, Department, Salary). Entities become database tables.
  3. Defining Attributes
    Each entity is described by attributes. For instance, Employee may have attributes such as EmployeeID, FirstName, LastName, and HireDate.
  4. Establishing Relationships
    Define how entities interact. Employees belong to departments, and each department may manage multiple employees. These relationships are modeled through primary and foreign keys.
  5. Applying Normalization
    Use normalization to eliminate redundancy and ensure consistency.

The Science of Normalization

Normalization is the process of organizing data to reduce duplication and improve integrity. SQL Server supports all classical normal forms. Let’s explore the key ones:

  • First Normal Form (1NF)
    • Rule: Eliminate repeating groups.
    • Example: Instead of storing multiple phone numbers in one column, create a separate table EmployeePhone with one phone number per row.
  • Second Normal Form (2NF)
    • Rule: Remove partial dependencies.
    • Example: If a table’s primary key is composite (e.g., EmployeeID + ProjectID), no attribute should depend on only one part of the key.
  • Third Normal Form (3NF)
    • Rule: Eliminate transitive dependencies.
    • Example: If Employee → DepartmentID and DepartmentID → DepartmentName, then DepartmentName should be stored in the Department table, not Employee.
  • Boyce-Codd Normal Form (BCNF)
    • Strengthens 3NF by ensuring every determinant is a candidate key.

Normalization ensures data consistency, but over-normalization can lead to excessive joins and performance overhead. Therefore, database architects often apply denormalization strategically for performance tuning, especially in analytical workloads.

Example: Designing an Employee Database

  1. Entities and Attributes
    • Employee (EmployeeID, FirstName, LastName, HireDate, DepartmentID)
    • Department (DepartmentID, DepartmentName)
    • Salary (SalaryID, EmployeeID, Amount, EffectiveDate)
  2. Primary and Foreign Keys
    • EmployeeID is the primary key in Employee.
    • DepartmentID in Employee is a foreign key referencing Department.
    • EmployeeID in Salary is a foreign key referencing Employee.
  3. Normalized Structure
    • Employee data is separate from Department details.
    • Salary history is stored independently, supporting multiple salary records per employee.

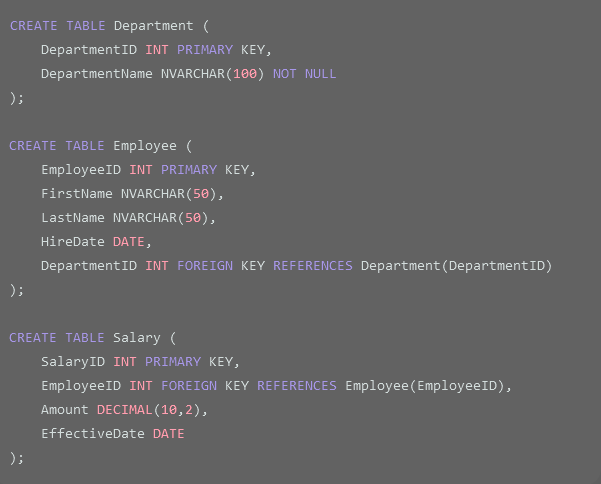

  4. Schema Implementation
Designing an Employee Database

This design enforces referential integrity, eliminates redundancy, and allows scalability.

Best Practices for Schema Design

  1. Use Consistent Naming Conventions
    • Prefix tables logically (e.g., HR_Employee, HR_Department).
    • Keep names descriptive and avoid abbreviations that reduce clarity.
  2. Define Keys and Constraints
    • Every table should have a primary key.
    • Use foreign keys to enforce relationships.
    • Leverage constraints like CHECK and UNIQUE for integrity.
  3. Optimize Data Types
    • Choose the smallest data type that supports expected values.
    • For instance, use TINYINT for age rather than INT.
  4. Document the Schema
    • Maintain an ER diagram.
    • Use extended properties in SQL Server to annotate tables and columns.
  5. Plan for Growth
    • Consider partitioning for large tables.
    • Design indexes early but review as workloads evolve.

Common Pitfalls

  • Overusing NULLs – Excessive nullable columns can complicate queries and logic.
  • Ignoring Index Strategy – A schema without indexes leads to slow queries.
  • Embedding Calculated Values – Store raw data, not derived values, unless required for performance.
  • Mixing Concerns – Keep transactional tables separate from reporting/analytical tables.
  • Skipping Normalization – Redundant data increases storage costs and risks inconsistency.

Hands-On Exercise

Design a schema for a university system with Students, Courses, and Enrollments.

  1. Identify entities: Student, Course, Enrollment.
  2. Apply normalization:
    • Student table for personal details.
    • Course table for course details.
    • Enrollment table linking StudentID and CourseID with enrollment dates.
  3. Implement in SQL Server and insert test data.
  4. Run queries to test referential integrity:

SELECT s.FirstName, s.LastName, c.CourseName
FROM Enrollment e
JOIN Student s ON e.StudentID = s.StudentID
JOIN Course c ON e.CourseID = c.CourseID;

This validates both schema design and normalization.

Schema design is a disciplined process that blends business requirements with relational theory. Normalization provides a structured path for eliminating redundancy and ensuring consistency, while SQL Server offers the features needed to enforce these rules. By mastering schema design, developers and administrators build databases that are not only technically sound but also adaptable to future demands.
